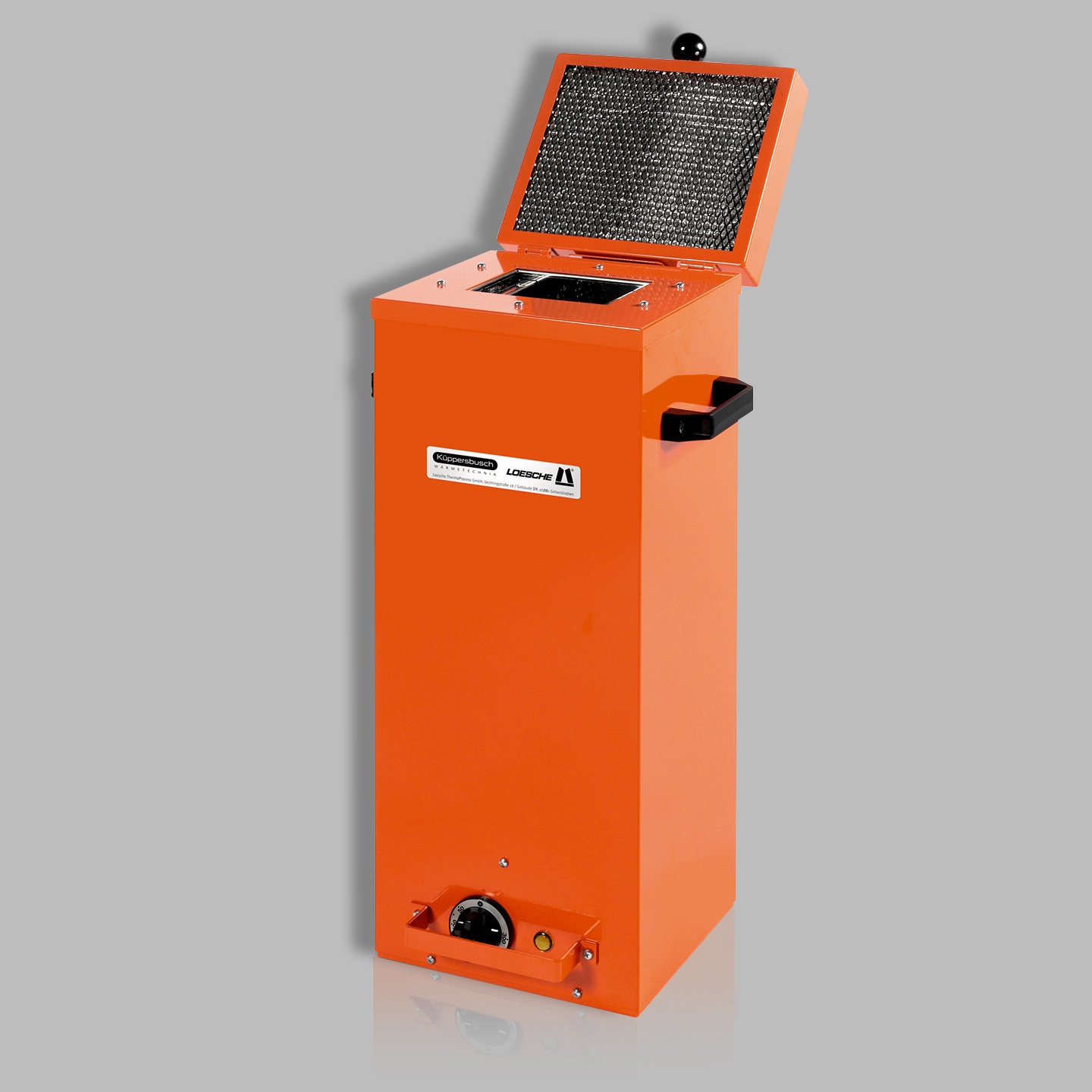

Electrode Dryer Type Set - 2
The Dryfast welding electrode drying oven SET – 2 is the ideal model for mobile applications in the workshop.
Thanks to the infinitely variable thermostatic control, the SET-2 electrode drying oven is extremely versatile.
The robust, double-walled and well-insulated housing is made of powder-coated and galvanised sheet steel.
The SET-2 is not supplied with an electrode basket but as option. The lifter is used for easy filling and removal of the electrodes.
The electrode dryer of the SET - 2 series are equipped with a 230V connection cable with a Schuko-plug.
Ventilation of the moisture-saturated atmosphere is ensured via the exhaust air duct on the lid.
Interior made entirely of stainless steel
All these features make the SET - 1 / TR the ideal appliance for the construction site.
Capacity | 10 kg Electrodes |
Dimensions in mm | 690 x 270 x 230 |
Weight | 14 kg |
Temperature | 300 °C |
Heating power | 600 Watt |
Input voltage | 230 V 50 Hz |
Order number: 845996
